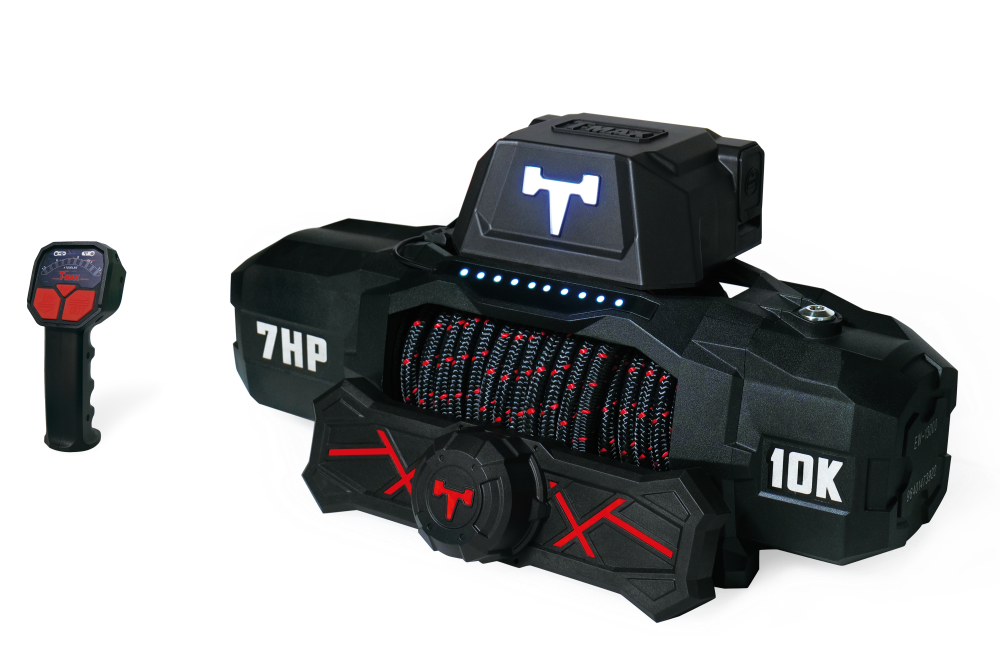

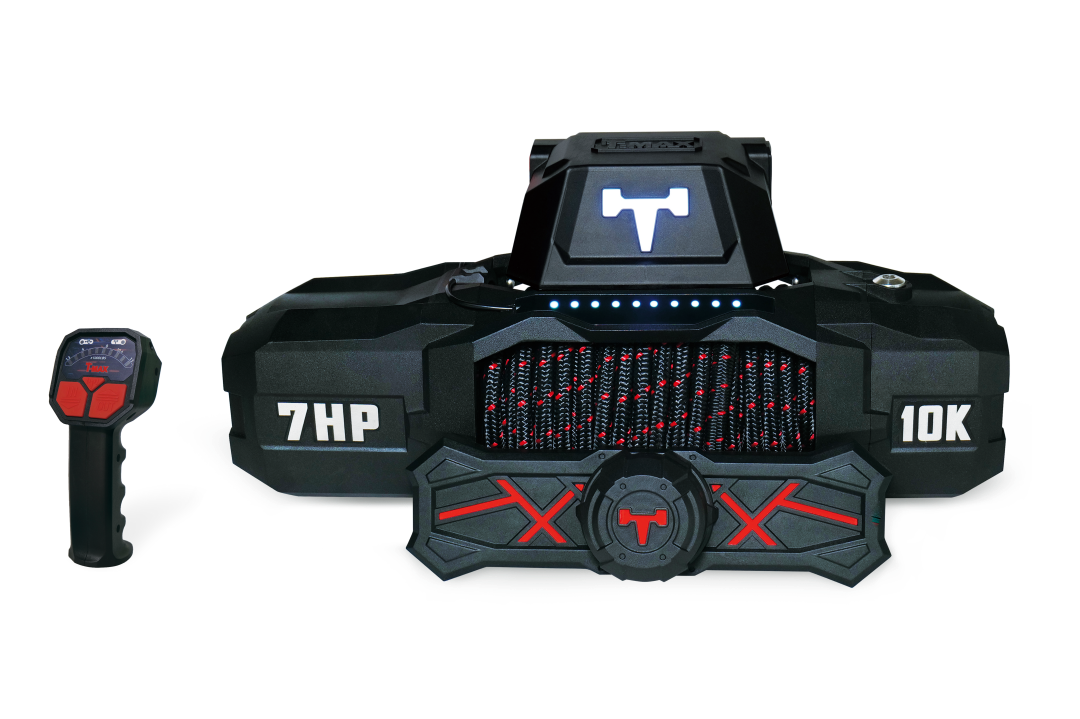

T-MAX Force View Titan Winch 10K

Single Rated Line Pull

10,000 lbs (4536KGS)

Motor

7HP Series Wound

Controller

12-foot Wired/Remote Switch

Gear Train

3-Stage Planetary

Clutch

Sliding Ring Gear

Braking

Automatic in-The-drum

Drum Size

Dia.2.5''(63.5mm) x Length 9.6''(224mm)

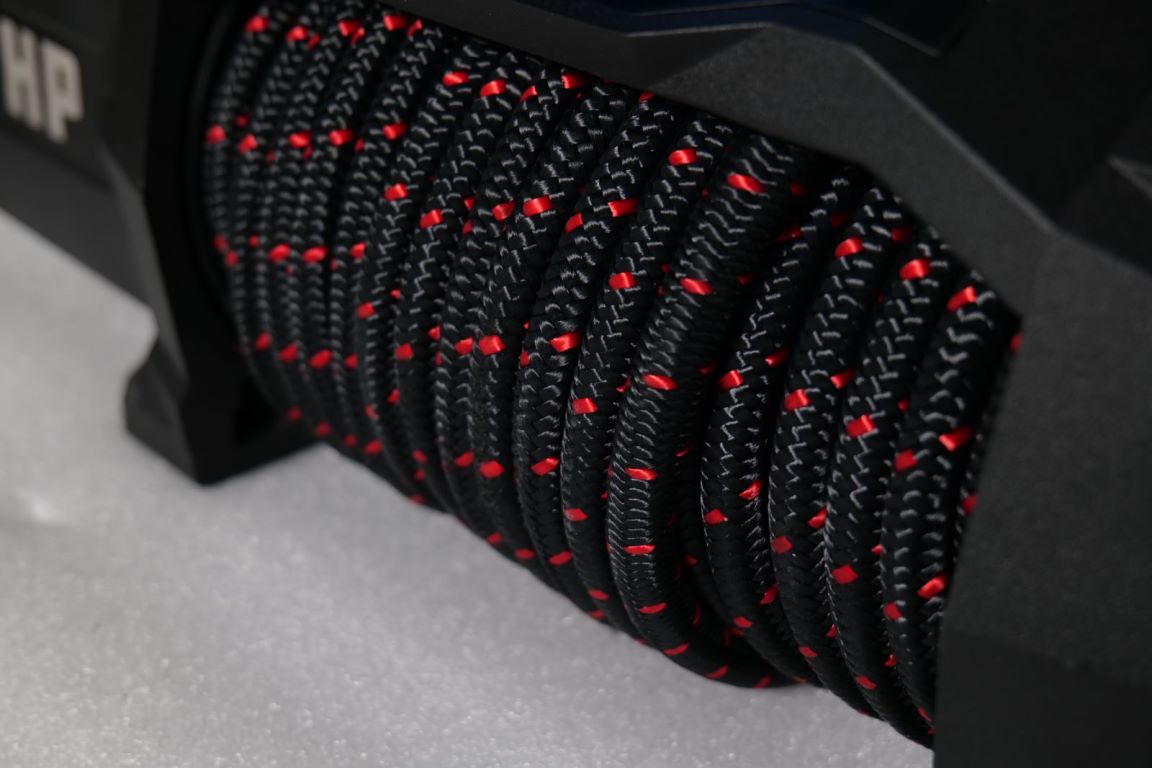

Synthetic Rope (COMP series）

11mmx28m

Fairlead (COMP Series)

Aluminum Hawse Fairlead

Remote Control

Included

Battery

Recommended 650 CCA

Battery Leads

1.83m

Net Weight

73.7lbs, 27kg

Overall Dimensions (LxWXH)

532x175x178mm

Mounting Bolt Pattern

254x114.3mm

T-MAX   FORCEVIEW TITAN(FVT) 10000

Line   Speed & Amp Draw -First Layer

Line

lbs.

No

2000

4000

6000

8000

10000

Pull

kgs.

Load

907

1814

2721

3628

4536

Line

fpm

12V

32.34

19.68

14.76

10.82

9.35

7.22

Speed

mpm

12V

9.86

6

4.5

3.3

2.85

2.2

Motor

amps

12V

85

150

214

278

340

405
